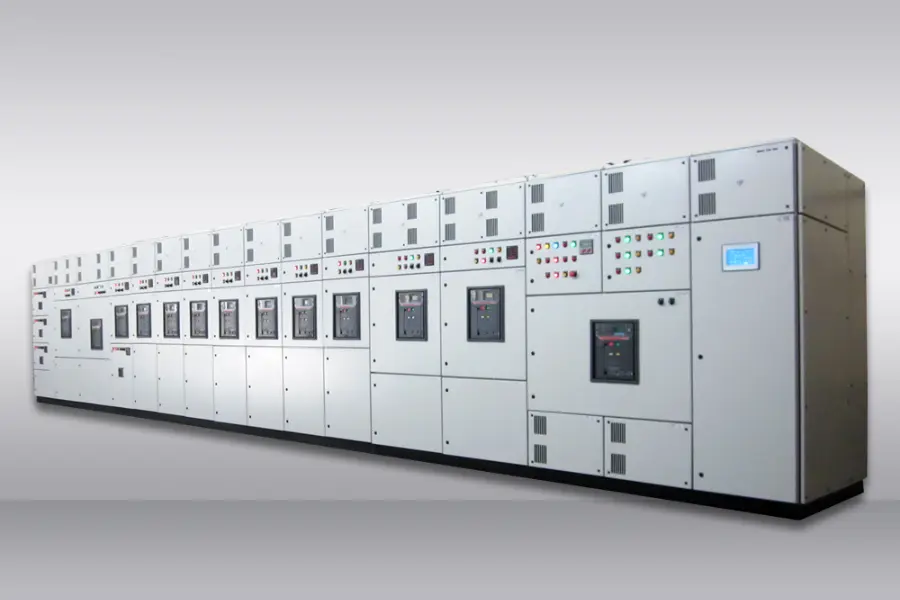

Power Control Centres (PCC)


PCC's can be supplied both with top and or bottom entry with features such as cable alley illumination lamps and space heaters with thermostats.

Product Features

Panels are designed and developed in accordance with the need of the client depending on incoming ACB & outgoing ACB or MCCB. Entire wiring is done with electrolytic Al/Cu or high-grade bright copper annealed standard PVC or FRLS or HR FR insulated flexible wires. We manufacture Power Control Centres Up to 6300A rating, suitable for operational Voltage of 415V in a 3-Phase 4-wire system. This range of PCC's is very effective in handling very high current at low voltage.

Technical Specifications

Operational Current Upto 6300 A
Ambient Temperature Max 50-60° C
Short Circuit Withstand Capacity 50-100 KA for 1 Sec
Protection Class IP 20 / IP 44 / IP 64
Type Fixed & Sami Draw out type with single
or double front design
Communication Modbus Protocol, RS485
